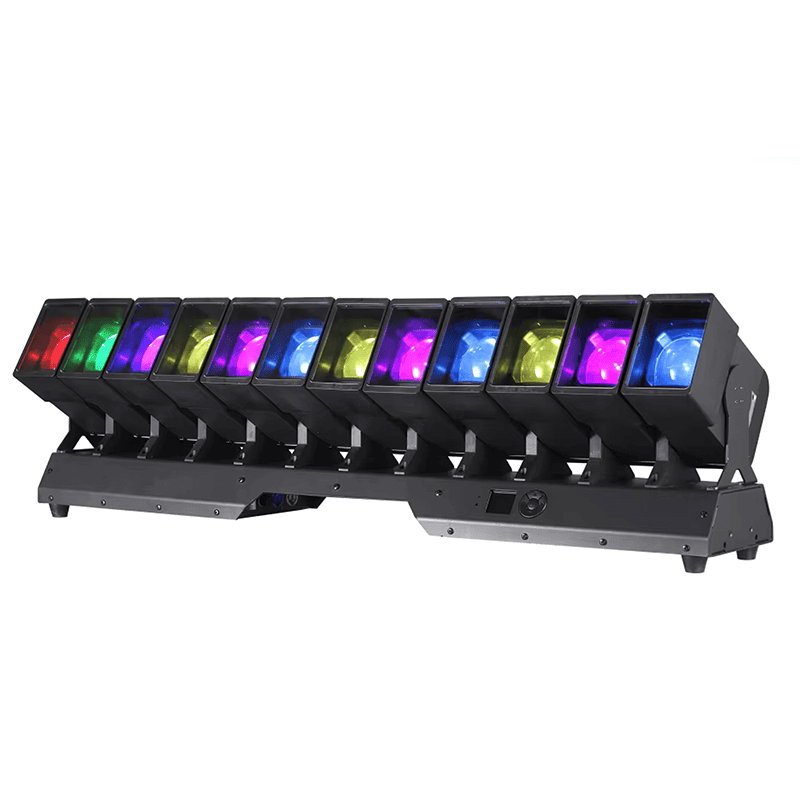

12x60W RGBW Pixel Beam Moving Head Light for Stage Effects
This 12x60W RGBW pixel beam moving head light is designed for professional stages, nightclubs, and touring productions that require high-intensity beams and dynamic pixel effects. With individual pixel control and powerful RGBW LEDs, it delivers sharp aerial beams, vivid color mixing, and eye-catching pixel chasing effects for modern lighting shows.
Description
12x60W RGBW Pixel Beam Moving Head Light for Stage Effects
Product Overview
This 12x60W RGBW pixel beam moving head light is designed for professional stage lighting applications that require high-intensity beam output and dynamic pixel effects.
Featuring 12 individually controllable RGBW beam heads, it allows lighting designers to create sharp aerial beams, pixel chasing effects, and synchronized beam movements for modern stage shows.
It is widely used in nightclubs, concerts, touring productions, and professional lighting rental projects where visual rhythm, motion, and impact are essential.
Key Features
Individual Pixel Beam Control
Each of the 12 beam heads can be controlled independently, enabling pixel chasing, wave effects, and pixel-mapped animations across the fixture.
High-Power RGBW LED Light Source
Equipped with 12 × 60W RGBW 4-in-1 LEDs, the fixture delivers intense beam brightness and vivid color mixing for professional stage environments.
Beam, Color Wash & Pixel Effects in One Fixture
Each pixel supports independent movement, color mixing, and beam output, allowing flexible lighting designs from a single unit.
Smooth 32-bit Linear Dimming
Supports 0–100% smooth linear dimming with 32-bit resolution for precise brightness control without flicker.
Professional Control & RDM Support
Supports DMX512, auto, master-slave, and sound-active modes, with built-in RDM functionality for remote configuration and monitoring.
Typical Applications
Nightclubs and EDM venues
Concerts and touring stage productions
Live events and performance stages
Professional lighting rental projects
Why Choose This Pixel Beam Moving Head Light
Unlike traditional beam moving head lights with a single light source, this fixture features multiple independently controlled RGBW beam heads.
This design allows complex pixel effects, multi-color beam patterns, and dynamic movement from a single unit, making it ideal for modern stage lighting systems that require creative freedom and visual impact.
Technical Specifications
| Item | Specification |
|---|---|
| Input Voltage | AC 100–240V, 50/60Hz |
| Power Consumption | 800W |
| Light Source | 12 × 60W RGBW 4-in-1 LEDs |
| Color Mixing | RGBW |
| Pixel Control | Individual control of each beam head |
| Control Modes | DMX512 / Auto / Master-Slave / Sound Active |
| RDM Function | Supported |
| DMX Channel Modes | CH20 / CH53 / CH101 / CH155 / CH169A / CH169B / CH179 |
| Dimming | 32-bit smooth linear dimming, 0–100% |
| Functions | Individual pixel movement, color mixing, and beam effects |
| Strobe Rate | 1–30Hz |
| Operating Temperature | -30°C to 50°C |
| Housing | Black metal housing |
| Signal & Power Connections | DMX512 input/output, power input/output |
| IP Rating | IP20 (Indoor use) |
| Dimensions | 1000 × 300 × 165 mm |
| Net Weight | 26.5 kg |
Lighting Library
Fixture Library File (.R20.D4)– Lighting Librarywnload
User Manual
User Manual (PDF, includes DMX channel chart) – 12-60wUser Manual
Control & Operation
This pixel beam moving head light supports DMX512 control for advanced programming and synchronized effects.
It can also operate in auto or master-slave modes, making it suitable for both complex lighting systems and standalone operation.
FAQ
A1: Yes. Each of the 12 RGBW beam heads can be controlled individually, allowing pixel chasing and pixel-mapped beam effects.
A2: Yes. Individual pixel control enables each beam head to operate separately for creative and dynamic lighting effects.
A3:Yes. With 12 × 60W high-power LEDs and 800W total power consumption, it is suitable for large venues and touring productions.
A4:It can create sharp aerial beams, pixel chasing effects, wave patterns, color wash effects, and synchronized movement.
A5:Yes. Its robust metal housing, professional control options, and versatile effects make it suitable for lighting rental applications.
