14x3W CREE LED Pixel Bar (Hybrid Warm White + RGB)

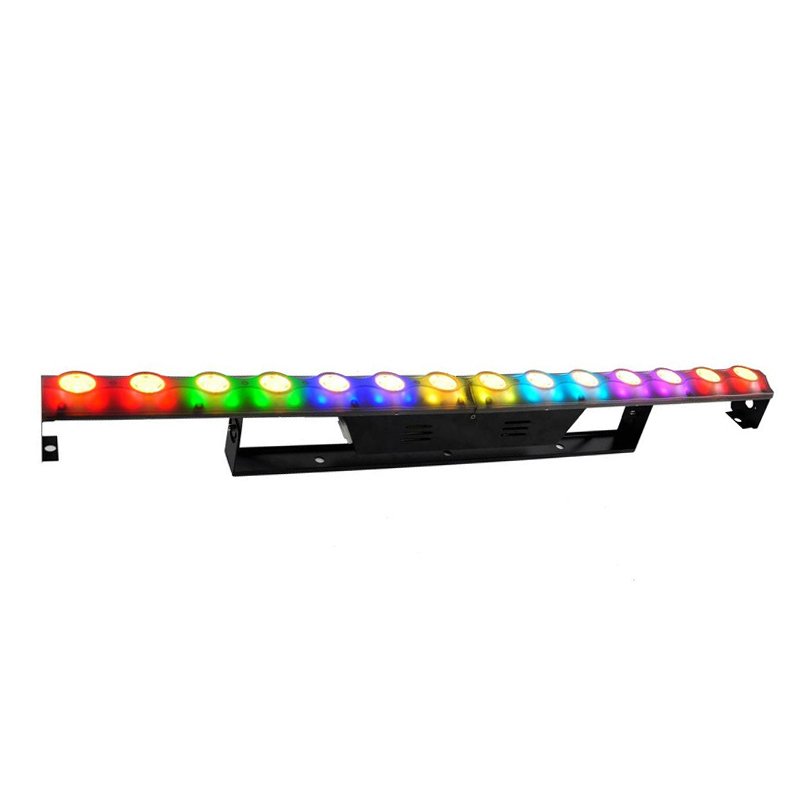

Our professional 14x3W CREE LED Pixel Bar is a high-performance hybrid stage light designed for dual-layer visual effects. It combines high-intensity warm white beams with a dynamic RGB pixel aura, perfect for touring stages and TV studios.

Main Light: 14x 3W Warm White CREE LEDs (High CRI, 6° Beam)
Background: 84x 0.5W RGB 3-in-1 SMD LEDs (Pixel Matrix)
Control: DMX512 (Up to 71 Channels) with Pixel Mapping
Warranty: 2 Years | MOQ: 1 Unit

contact us
Category:
Spread the love

Description

The Ultimate Hybrid: Beam + Pixel Aura

This 14x3W CREE LED Pixel Bar eliminates the need for separate blinders and pixel strips by delivering two distinct effects in one housing:

  1. The Beam Layer: Powered by 14 genuine CREE 3W Warm White LEDs. With a tight 6° beam angle, it projects sharp beams that cut through fog like a traditional Sunstrip.

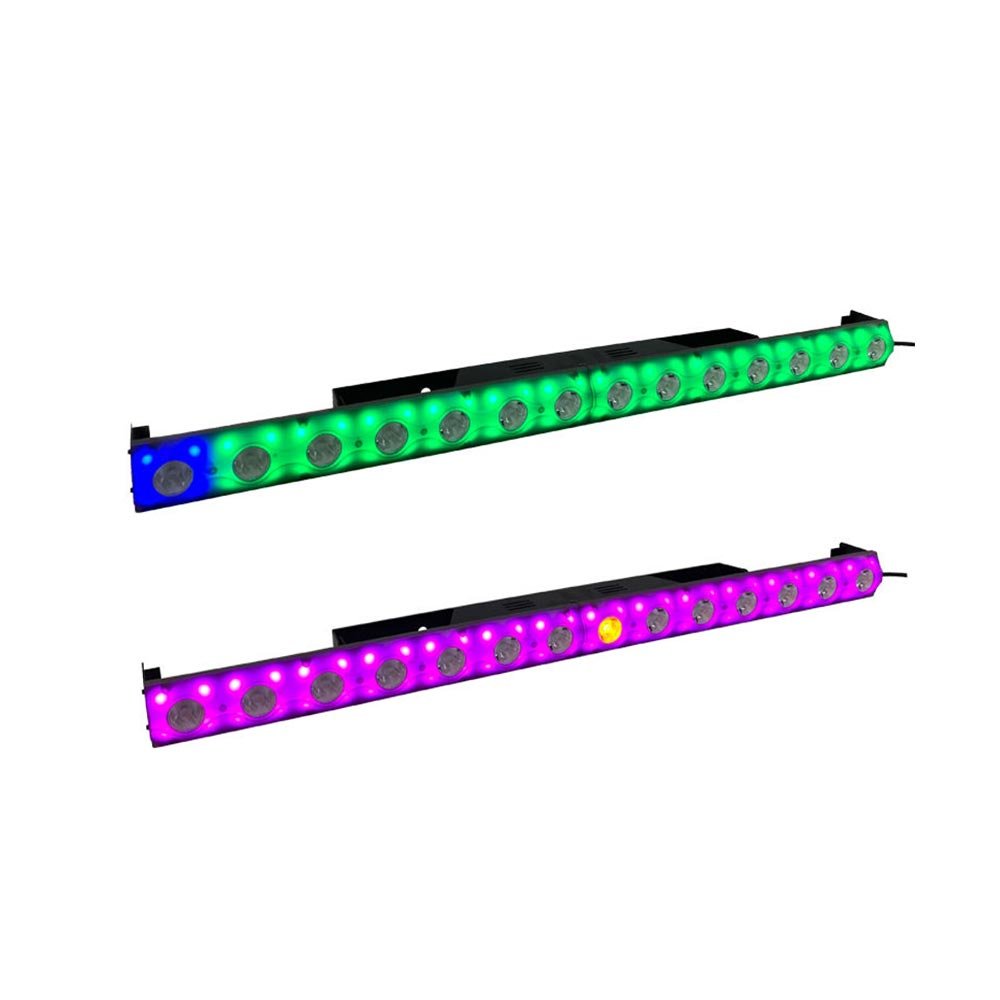

  2. The Pixel Layer: Surrounding the beams are 84 pieces of 0.5W RGB 3-in-1 LEDs. These provide a saturated color background and running water effects that work independently from the main beams.

Technical Specifications

ParameterSpecification
Model Name14x3W CREE LED Pixel Bar
Main Light Source14pcs 3W Warm White CREE LEDs
Background Light84pcs 0.5W RGB 3-in-1 LEDs
Beam Angle6° Beam / 8° Field Angle
Power Consumption100W
Input VoltageAC 90-240V, 50/60Hz

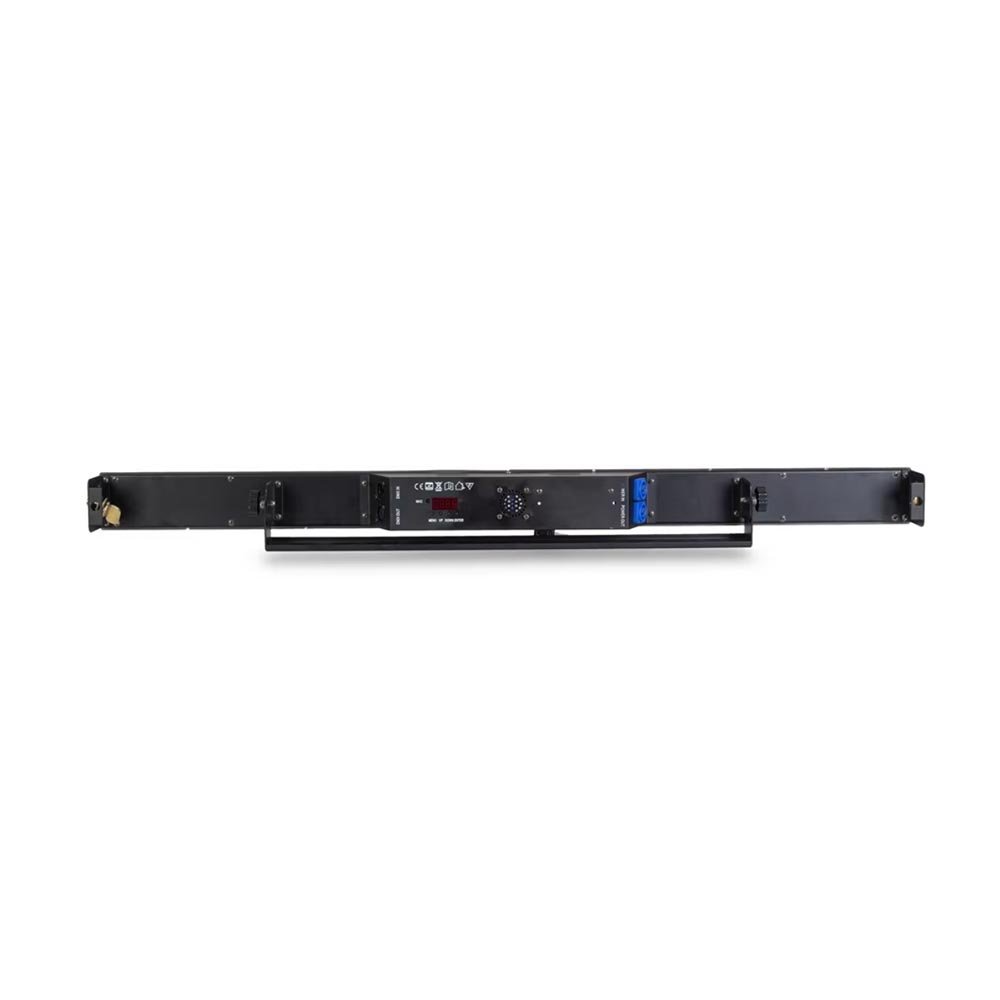

Control ProtocolDMX512 / RDM Supported
DMX Channels6 / 9 / 56 / 61 / 71 CH (Pixel Control)

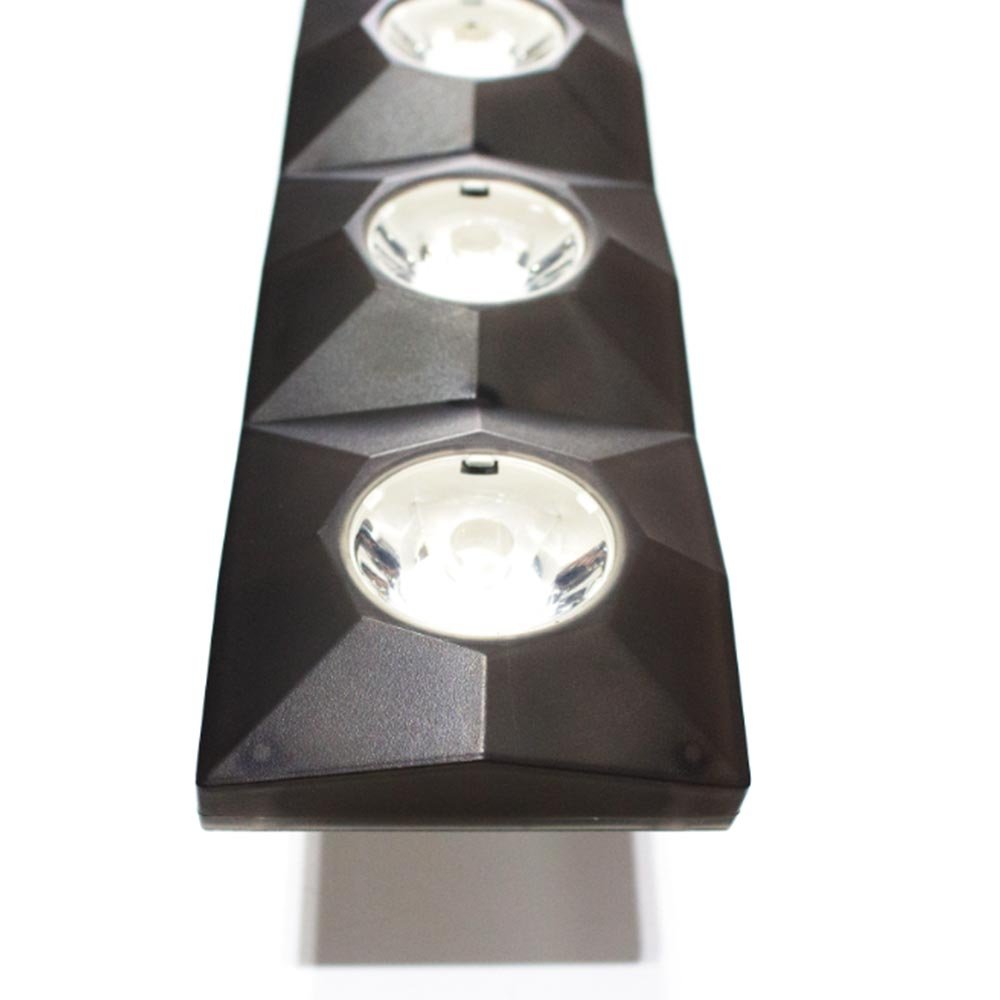

HousingDie-cast Aluminum Alloy (Black)
IP RatingIP20 (Indoor Use)

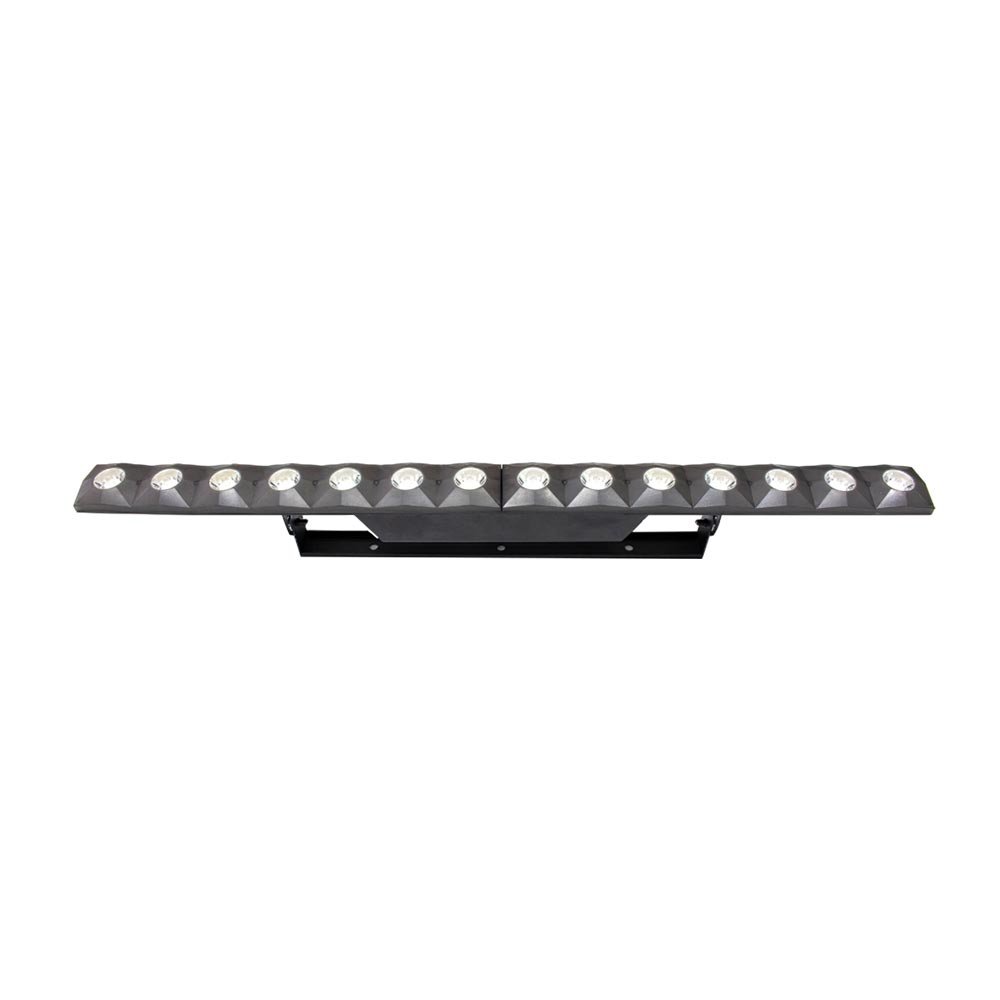

Dimensions100 × 7 × 13 cm
Net Weight3.0 KG



Professional Control & Effects

Designed for lighting designers, this 14x3W CREE LED Pixel Bar offers flexible control modes:

  • Simple Mode (6/9 CH): Quick access to dimmer, strobe, and 59 built-in effect macros.

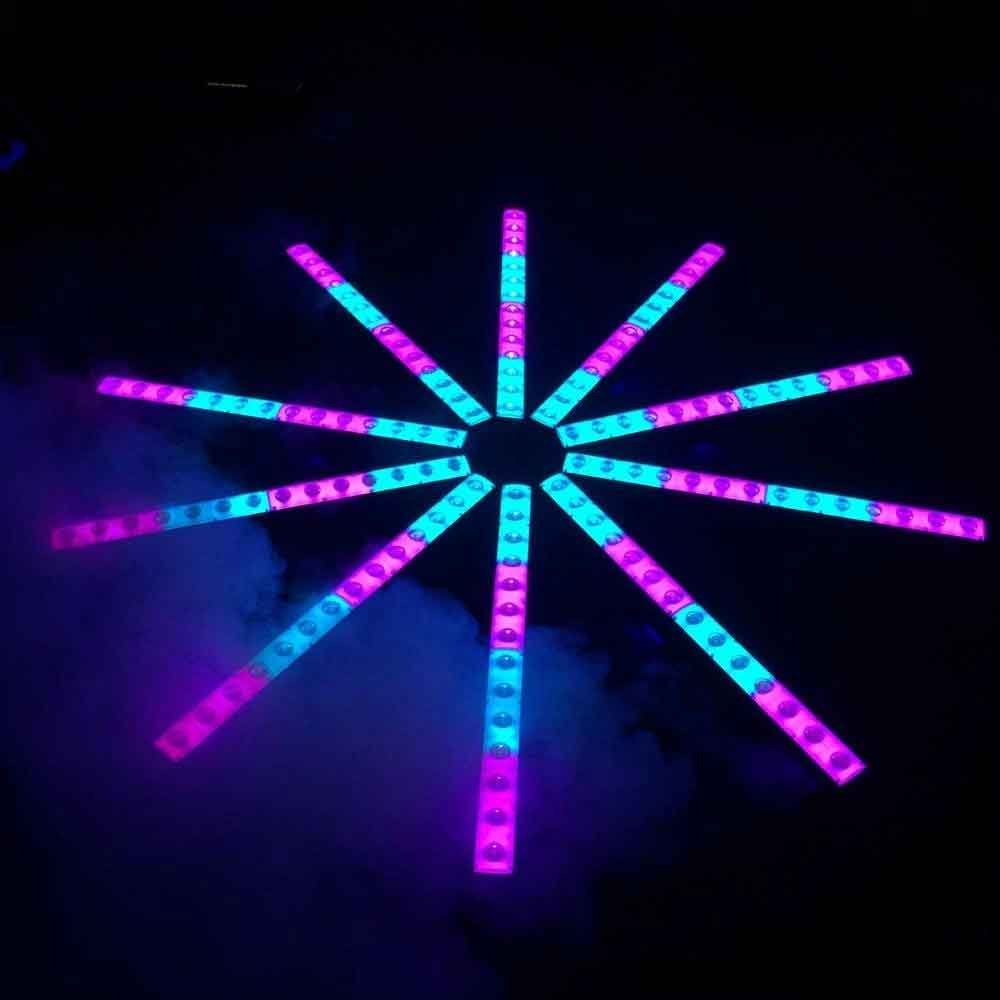

  • Pixel Mode (71 CH): Allows for individual control of the 14 Warm White beams and the RGB background sections. This is ideal for pixel mapping via Madrix to display letters and complex patterns.

  • Sound Active: Built-in high-sensitivity microphone for plug-and-play music synchronization.

Why Choose Us as Your Manufacturer?

  • Genuine CREE Components: We guarantee the use of authentic CREE chips for stable 3200K color temperature and high brightness.

  • Strict QC: Every 14x3W CREE LED Pixel Bar undergoes a 4-hour aging test and vibration testing before shipment.

  • OEM Service: We offer custom logo printing and packaging customization for bulk orders.

Applications

  • Concerts: Used as audience blinders or footlights.

  • TV Shows: Flicker-free performance ensures perfect visuals on camera.

  • Nightclubs: The hybrid mix of sharp beams and RGB aura creates high-energy atmospheres.

Downloads

  • [PDF Icon] Download User Manual & DMX Chart

  • [File Icon] Download IES Files

Ready to order the 14x3W CREE LED Pixel Bar? Contact us today for the latest wholesale price list.

FAQ

A1: Yes, in 71CH DMX mode, you have full independent control over both layers.

A2: The fixture comes with adjustable brackets for truss clamping or floor standing.

A3: Single carton size is 111 × 18 × 23 cm. Flight cases are available upon request.
