5×120W Pixel Beam Moving Head Light Bar

Description

This 5×120W Pixel Beam Moving Head Light Bar is engineered for high-output stage environments where standard pixel beam fixtures no longer deliver sufficient visual impact.
Designed for large-scale stages, touring productions, and outdoor events, it combines five high-power 120W LED beam engines with pixel-based motion control to produce long-throw, high-intensity beam effects that remain clearly visible under strong ambient light.

Rather than focusing on compact flexibility, this fixture prioritizes beam presence, distance coverage, and sustained performance.
Its architecture is built to support demanding show conditions, making it a dedicated pixel beam solution for professional productions that require strong aerial effects, wide-stage coverage, and consistent output across large venues.

Product Structure

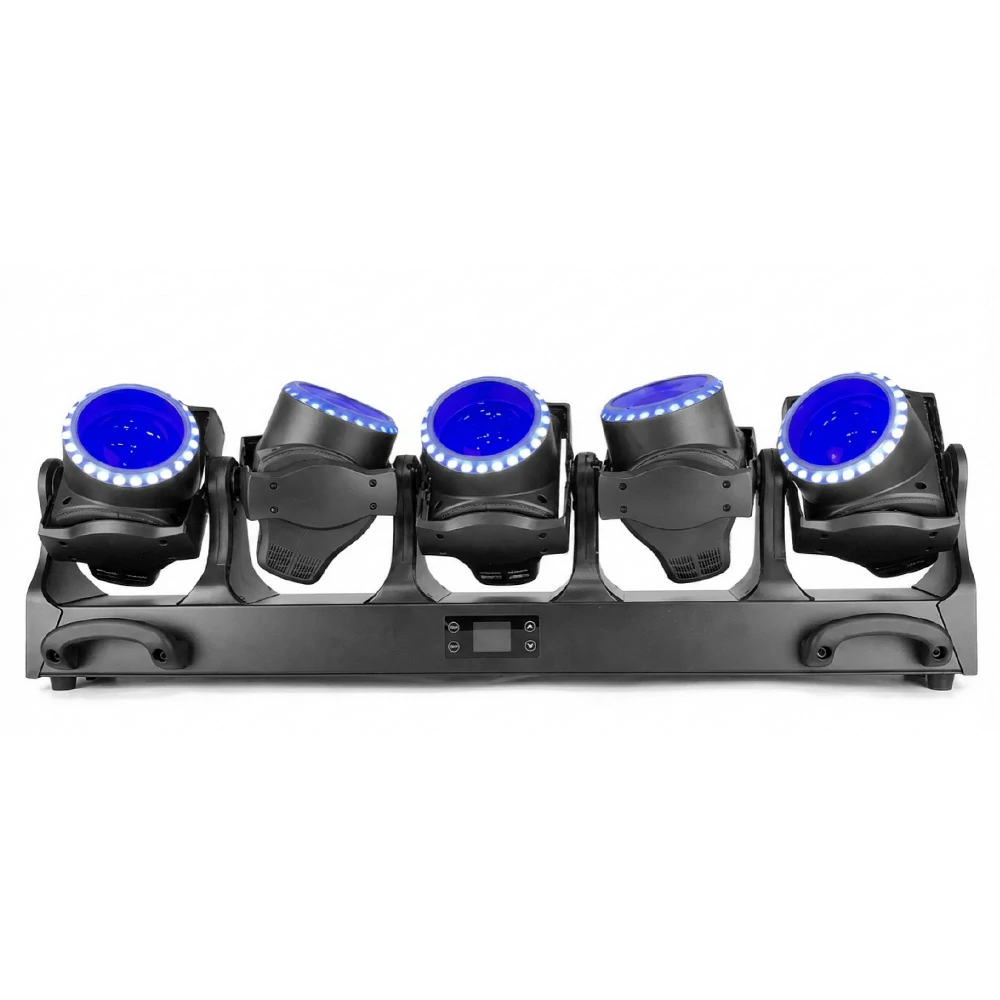

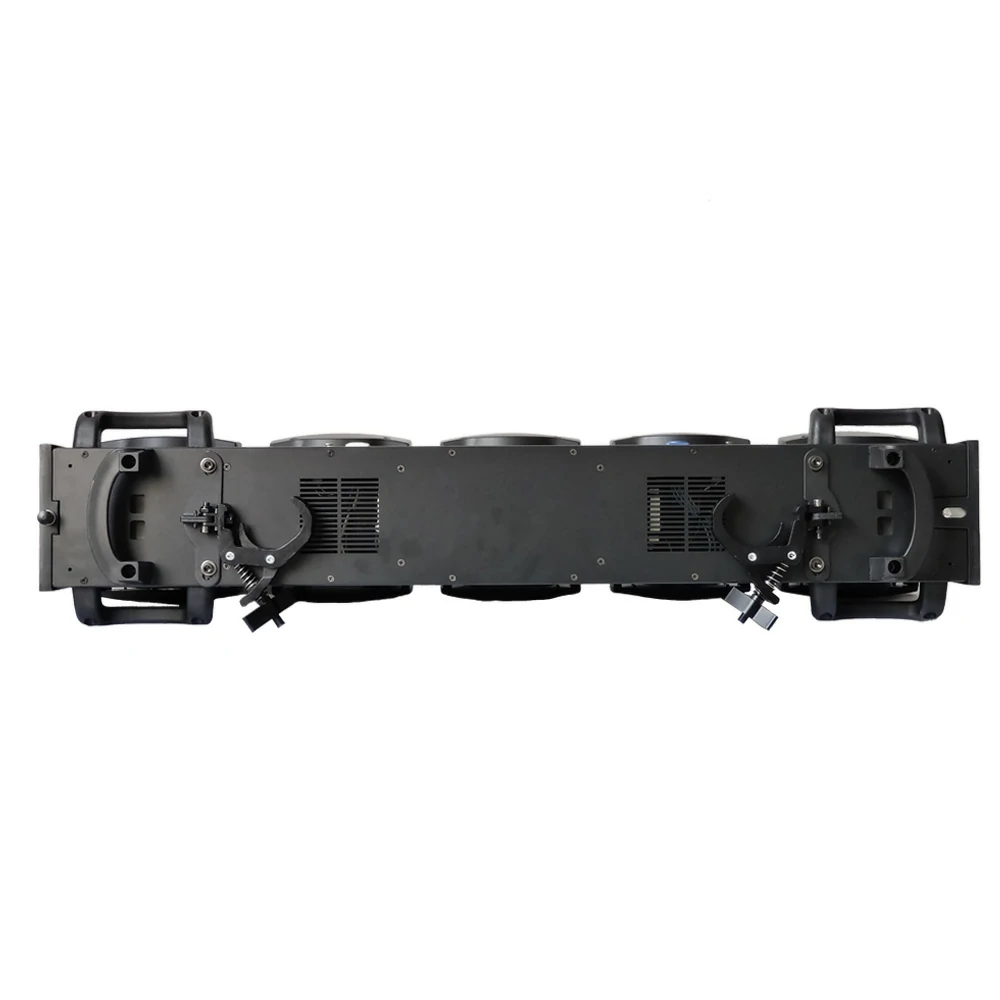

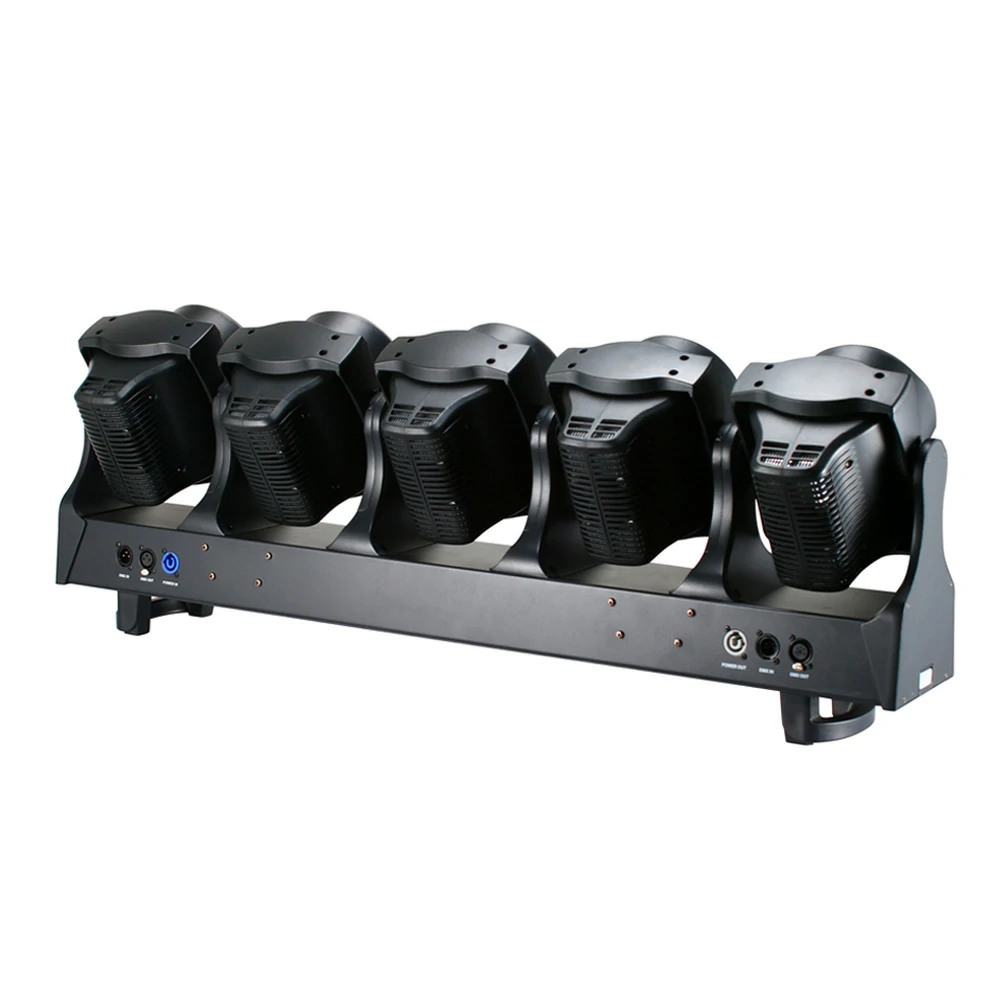

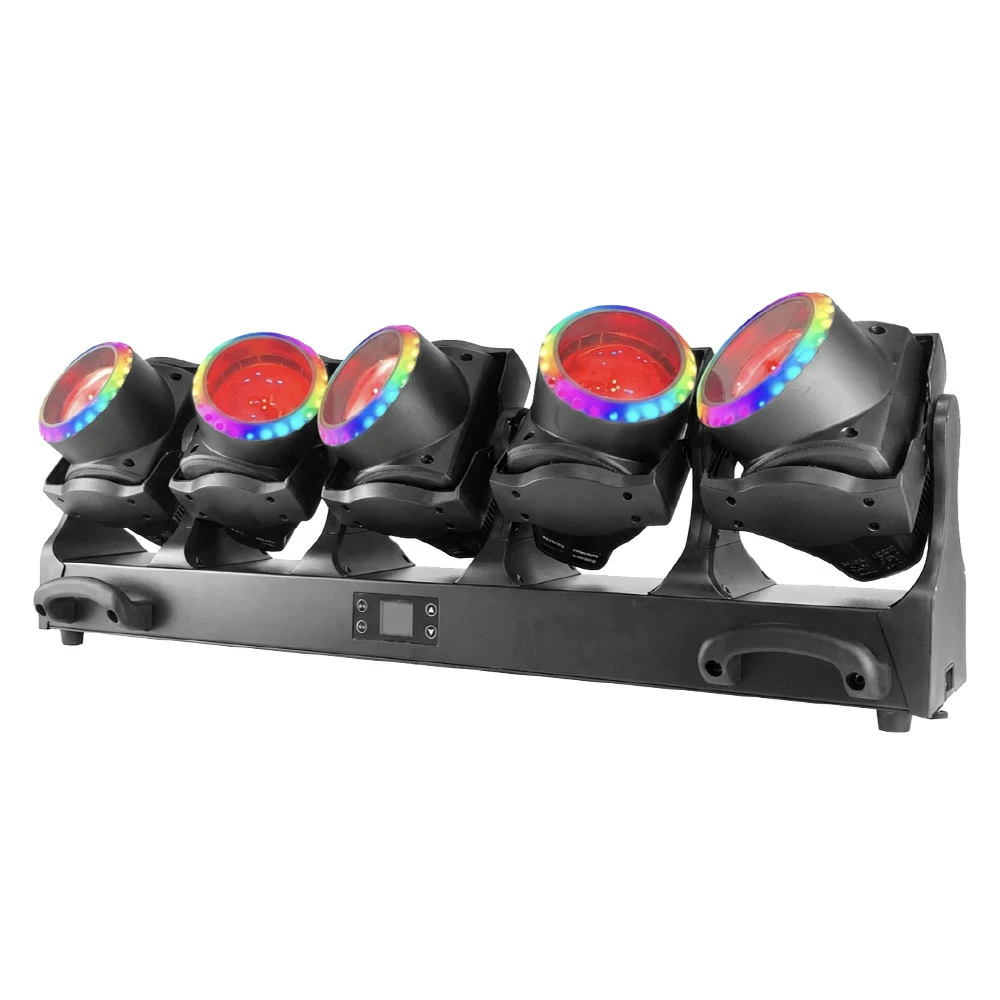

This fixture adopts a reinforced linear bar construction that integrates five independently mounted 120W beam modules within a single rigid housing.
Each beam head operates as an individual moving unit. This allows precise pan, tilt, and zoom control without mechanical interference between adjacent heads.

The bar-format design maintains consistent beam alignment across all five outputs.
Uniform aerial geometry is preserved during synchronized movement, segmented pixel motion, and wide-span beam sweeps.

Internal spacing and structural layout are optimized for high-power operation.
This supports thermal stability and mechanical reliability during long-duration shows and continuous movement sequences.

Control & Connectivity

This pixel beam moving head light bar is designed for professional lighting control environments.
It supports DMX512, RDM, and Art-Net protocols, allowing integration with both traditional lighting consoles and network-based control systems.

Multiple DMX channel modes enable flexible programming.
Operators can choose between grouped beam control and detailed pixel-based movement sequencing.

An onboard LCD display provides direct access to addressing, configuration, and operating modes.
Firmware updates can be performed via DMX connection to ensure long-term system compatibility.

Performance & Effects

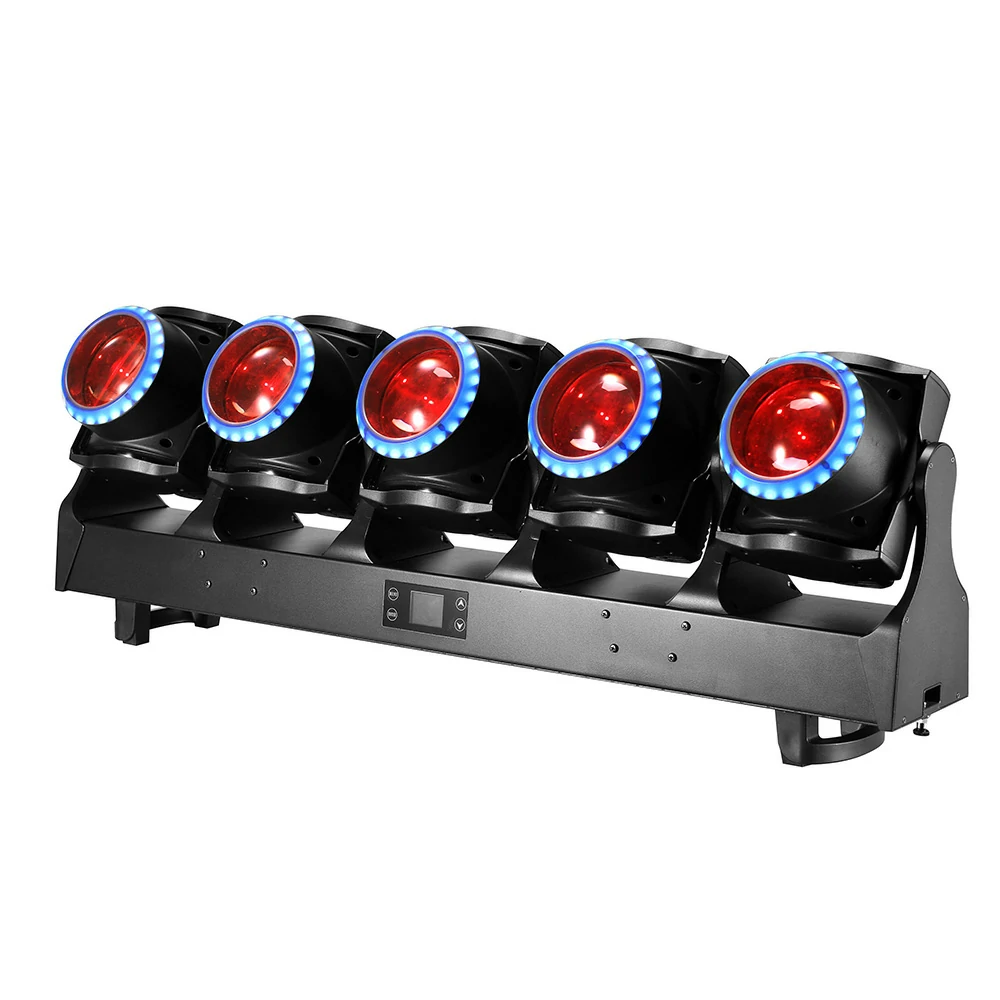

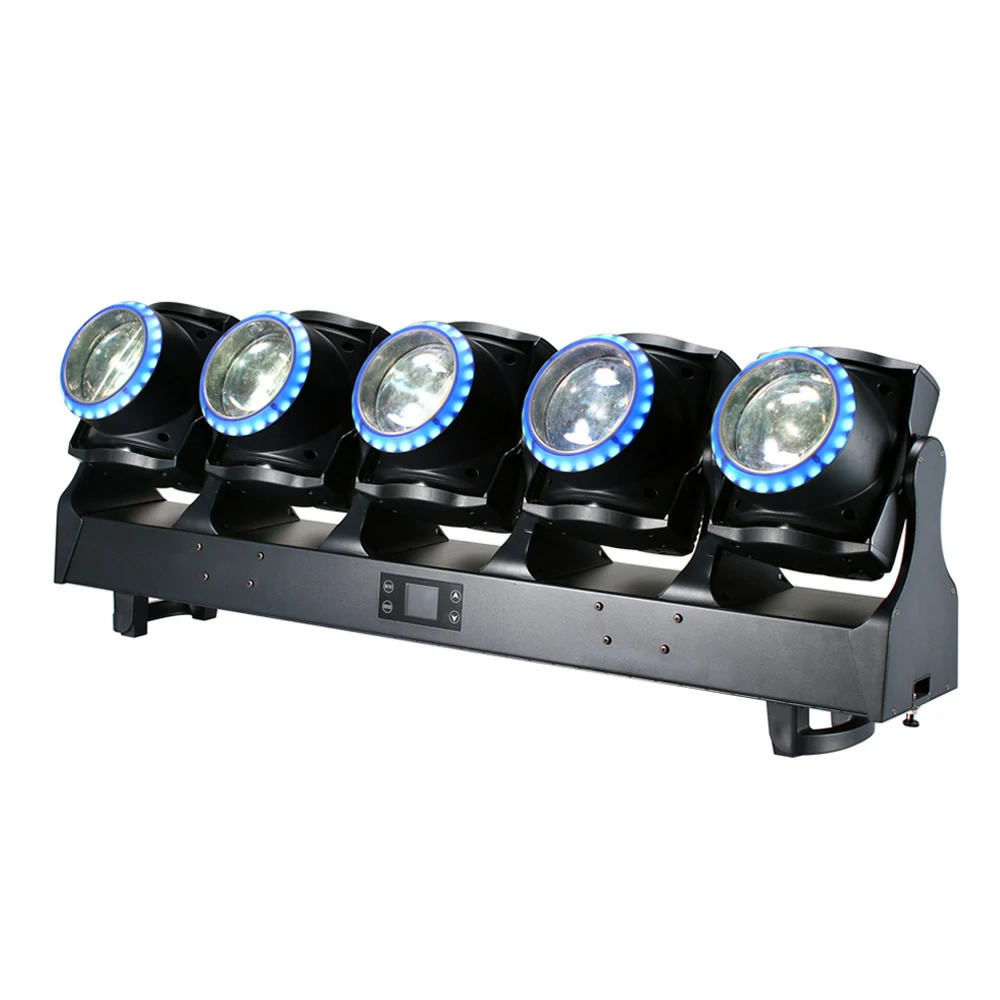

Each 120W RGBL beam engine delivers concentrated, high-intensity output.
The beam structure is optimized for long-throw projection and strong mid-air visibility under demanding show conditions.

The optical system supports a wide zoom range.
Tight, defined aerial beams can be produced, as well as broader coverage for large-stage compositions.

Independent head movement combined with pixel-based control allows complex aerial structures.
Directional chases and layered motion effects can be generated across the full length of the bar.

Smooth 0–100% linear dimming ensures precise intensity transitions.
Variable-speed strobe functions and advanced RGBL color mixing support consistent color output at high brightness levels.

This performance architecture emphasizes beam presence and spatial impact.
It is designed for environments where compact effect density is less critical than projection distance and visual authority.

Applications

This 5×120W Pixel Beam Moving Head Light Bar is intended for professional use cases that require high-output beam performance, including:

• Large-scale stage productions

• Touring concert systems

• Outdoor performances and festivals

• High-output rental inventories

• Venues requiring long-throw aerial beams and wide-stage coverage
