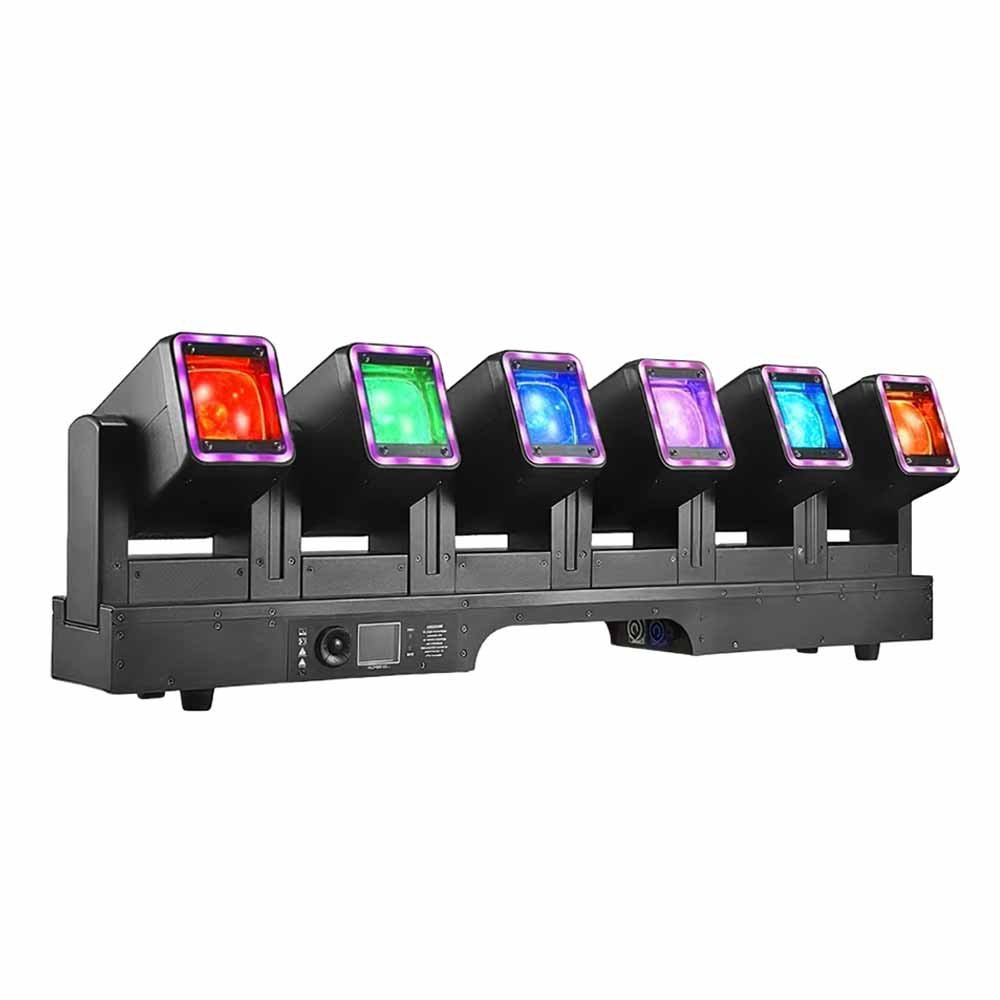

6×60W Pixel Beam Moving Head Light Bar
6×60W Pixel Beam Moving Head Light Bar featuring six independently controlled moving heads in a single linear fixture.
It combines focused beam output with auxiliary RGB pixel effects, supporting precise pan, tilt, and focus control via DMX.
Designed for compact installations requiring layered motion and beam effects.
Description
This 6×60W Pixel Beam Moving Head Light Bar is designed as a compact yet high-output moving bar fixture for stage shows, DJ performances, and rental applications.
Each head operates independently with pan, tilt, and focus control, combining sharp beam effects with auxiliary RGB pixel wash to create layered movement and color dynamics.
This page focuses on the fixture’s role as a multi-head pixel beam solution, highlighting motion behavior, effect structure, and control flexibility rather than general lighting categories.
Product Structure

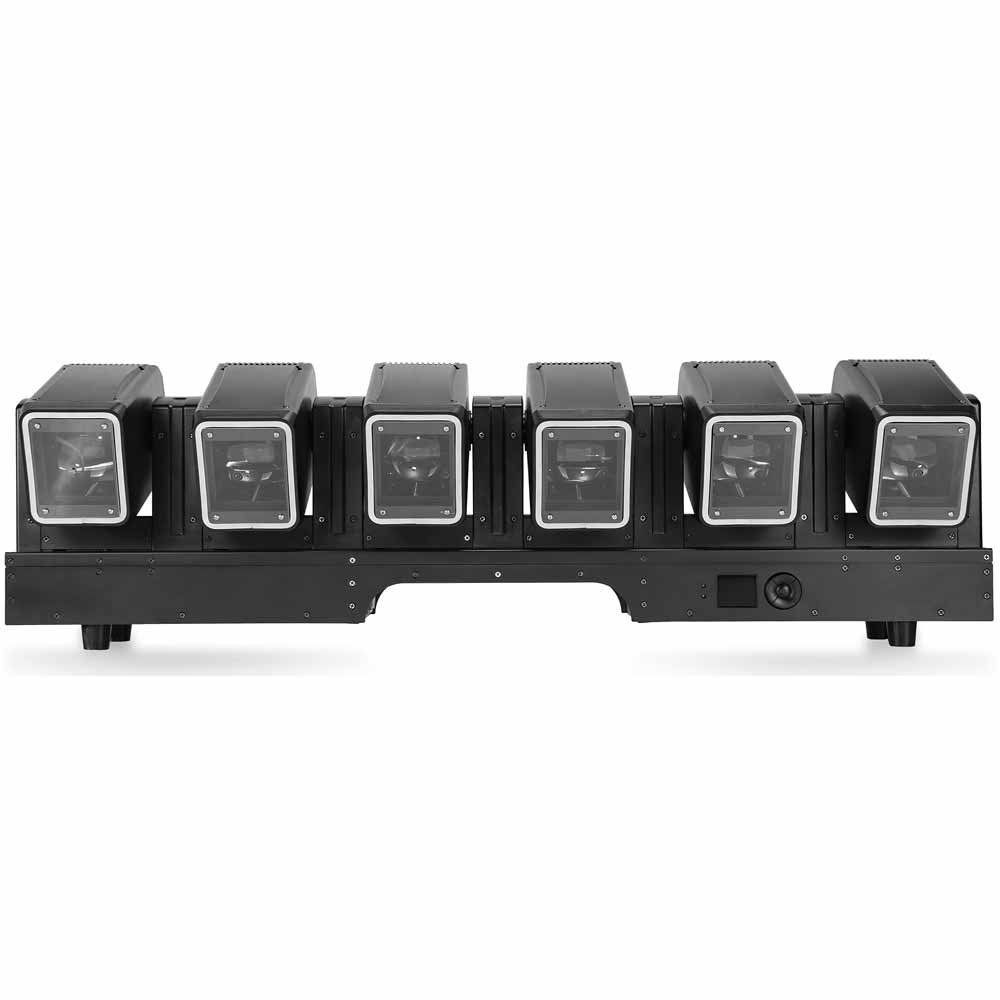

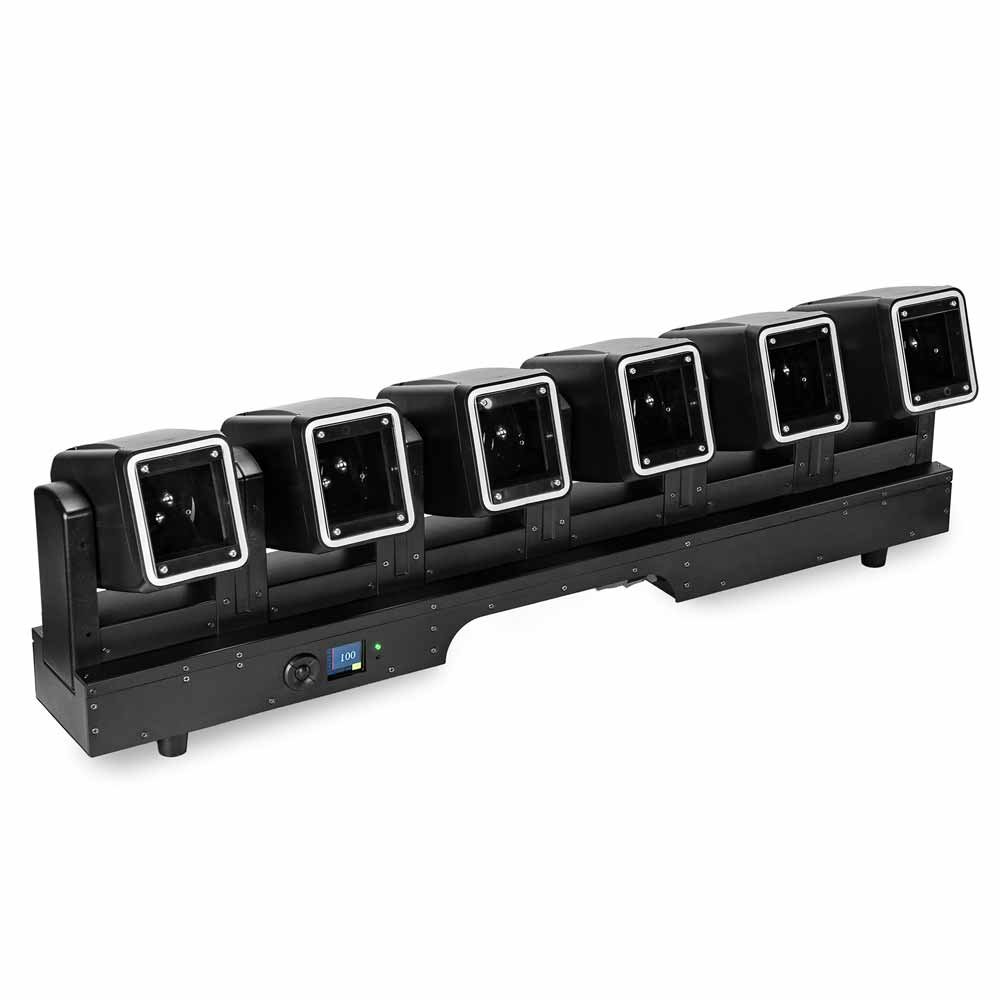

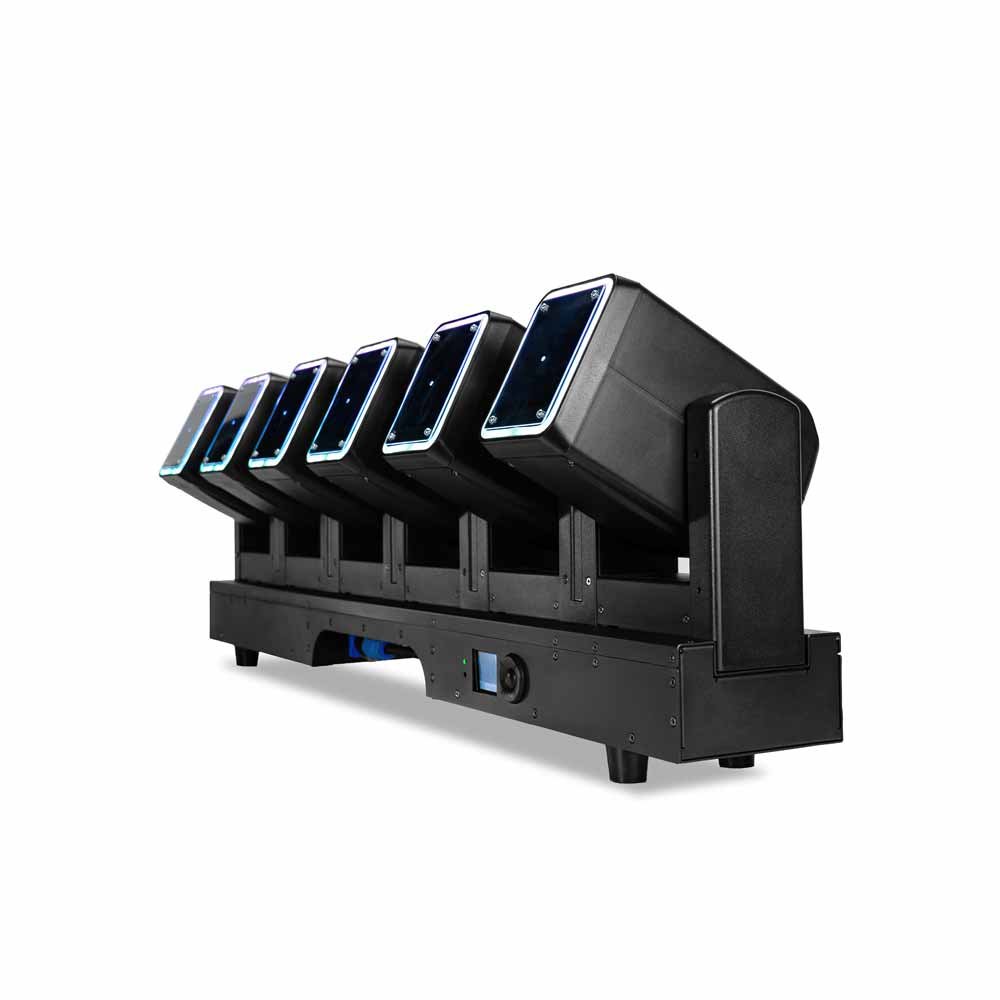

This fixture uses a linear bar design that integrates six independently controlled moving head units into a single reinforced metal housing.
As a result, each head moves independently without mechanical interference, which allows both synchronized movement and segmented beam patterns across the bar.
As a 6×60W Pixel Beam Moving Head Light Bar, the fixture maintains consistent beam alignment and motion accuracy across all six heads, even during complex movement sequences.
In addition, six 60W 4-in-1 LED light engines generate the primary beam output, while auxiliary RGB pixel LEDs add background color layers.
Because both systems operate independently, the fixture can run beam projection and pixel wash effects simultaneously or separately.

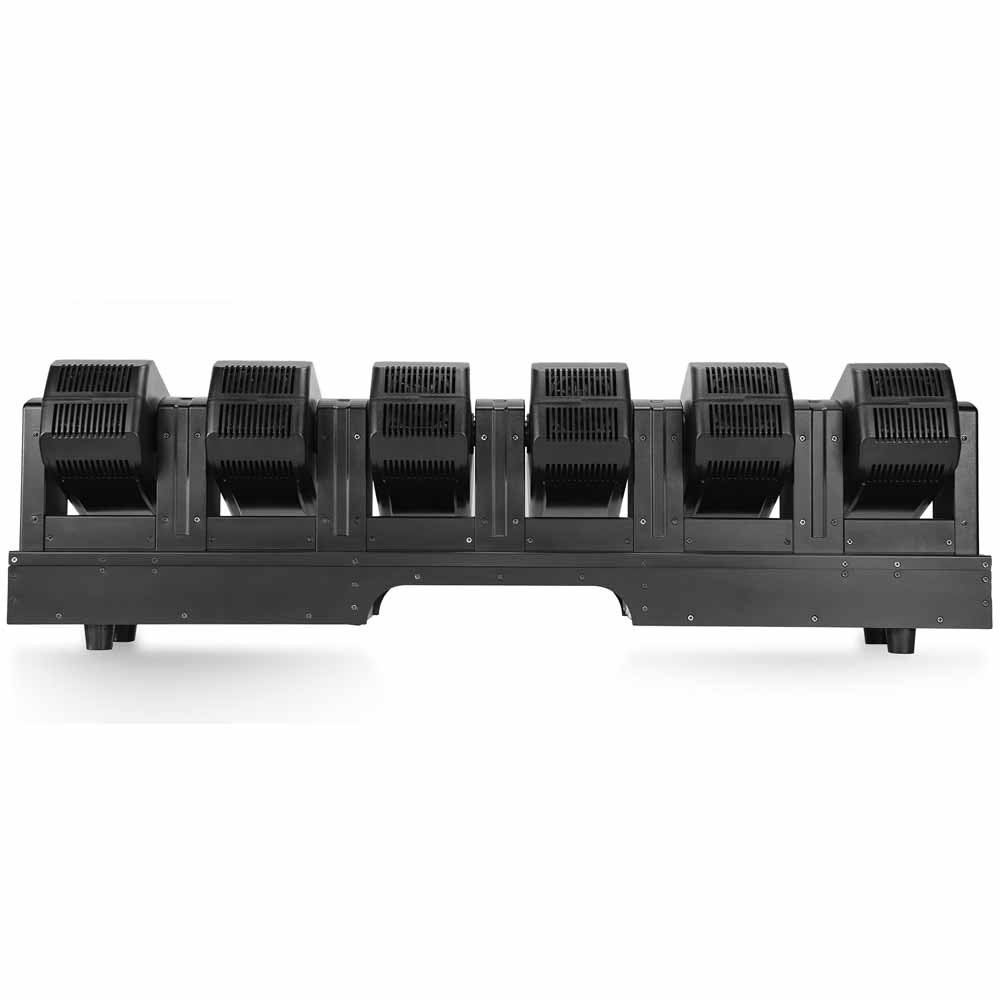

Moreover, the black-finished metal chassis improves structural stability and heat dissipation. This construction also supports touring and rental environments where durability matters.
Control & Connectivity
The fixture supports several control options, which makes system integration straightforward:
DMX512 control with selectable channel modes (21CH / 36CH / 56CH)
Master–slave operation for synchronized multi-unit setups
Sound-activated and automatic programs for standalone operation
Through DMX control, operators can address each moving head individually. Therefore, pan, tilt, focus, beam output, and pixel effects remain fully adjustable per head.

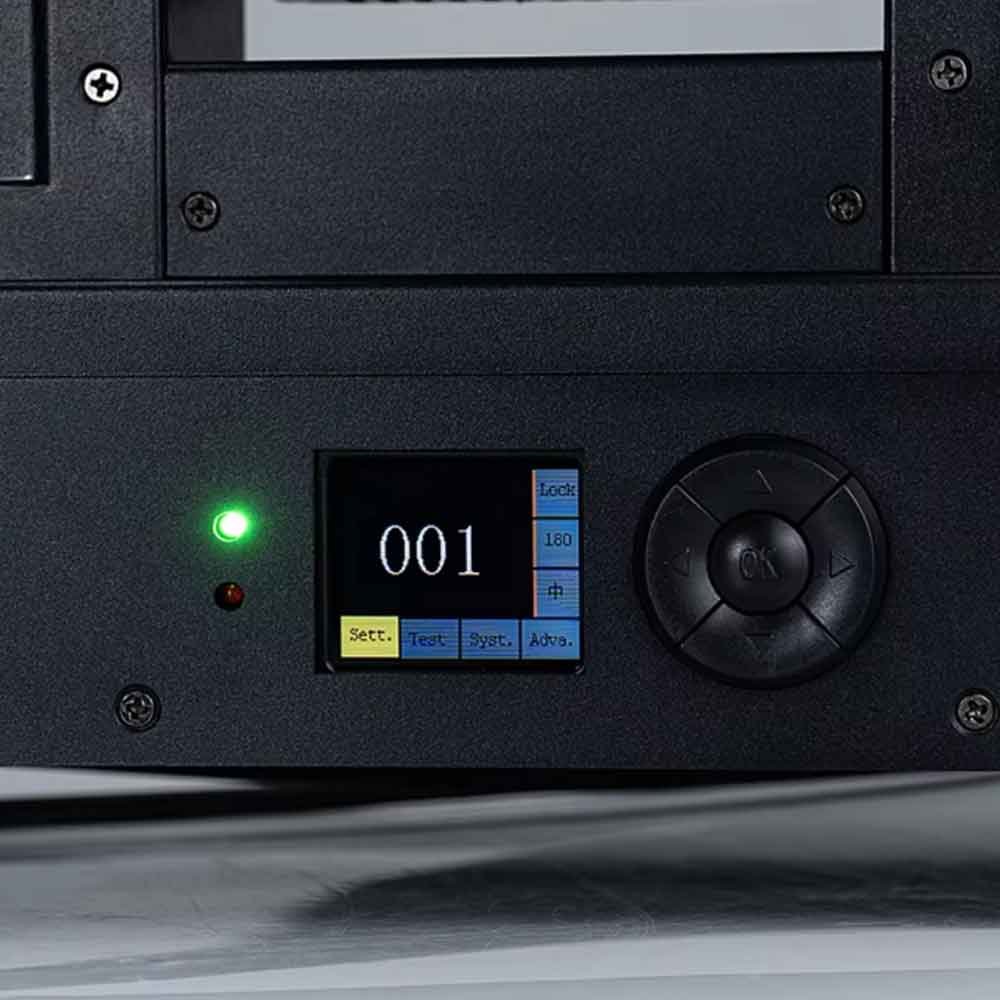

At the same time, the onboard display and menu buttons provide quick access to addressing, operating modes, and system parameters without external controllers.
Performance & Effects
Each head delivers a focused beam with adjustable focus control. Consequently, the fixture supports both sharp aerial beams and softened beam edges.
Because every head moves independently, the bar can generate wave effects, dynamic chases, and complex motion sequences across its full length.
Meanwhile, the auxiliary RGB pixel LEDs add layered color effects behind the beam output. This combination increases visual depth and enhances motion complexity.
In addition, linear dimming from 0–100% ensures smooth fades, while strobe effects operate from 1–25 flashes per second or in random patterns.
Overall, this pixel beam architecture balances high-impact movement with precise color and intensity control.
Applications
This multi-head pixel beam moving bar integrates easily into professional lighting systems that require flexible motion and layered effects.
For example, designers often use it in stage lighting rigs that need segmented beam movement or synchronized bar-wide effects.
Furthermore, it fits well into performance and DJ setups where compact size and dynamic visuals are essential.
Rental systems also benefit from the fixture’s versatility, as it covers multiple effect roles within a single unit.
Rather than serving as a general-purpose fixture, it functions as a dedicated pixel beam moving head bar within structured lighting designs.
Technical Specifications
Input Voltage: AC90–240V
Power Consumption: 500W
Frequency: 50–60Hz
Light Source:
6 × 60W 4-in-1 LED (main beam)
Auxiliary RGB LEDs: 6 × 21 × 0.3W
Control Modes: DMX512 / Master–Slave / Sound / Auto
DMX Channels: 21CH / 36CH / 56CH
Pan Movement: 540°
Tilt Movement: 270°
Strobe: 1–25 Hz or random
Dimming: 0–100% linear dimming
Housing: Metal, black finish
Display: Built-in control display (English interface)
Ingress Protection: IP20
Net Weight: 20 kg
Dimensions: 950 × 128 × 329 mm
