Pixel Beam Moving Head Light Bar with Dual Movement – 6x60W

Description

The pixel beam moving head light bar with dual movement is designed for professional stage lighting where dynamic motion and visual impact are essential. This fixture combines independent head movement with base rotation, creating a true dual movement system that delivers more complex and powerful lighting effects.

This model belongs to our Pixel Beam Moving Head Light series, developed for advanced stage lighting setups where flexibility and motion design are critical.

Dual Movement System (Core Advantage)

This 6x60W pixel beam moving head light bar features a dual movement system:

• Independent movement of each head
• Additional base rotation for the entire bar

This combination allows lighting designers to create:

• Multi-layer beam effects
• Wide sweeping motions
• More dynamic stage transitions
• Stronger visual build-ups

It transforms traditional beam effects into a more immersive lighting experience.

Why It’s More Advanced Than Standard Pixel Beam

Compared to a standard 6x60W Pixel Beam Moving Head Light Bar, this upgraded version adds a dual movement system that significantly expands motion capabilities.

• Standard model: single-level movement
• This model: dual movement (heads + base)
• Standard model: localized effects
• This model: full-stage dynamic motion

👉 This makes it a more powerful solution for professional lighting applications.

Key Features

• 6×60W RGBW 4-in-1 high power LEDs
• Dual movement system (head + base rotation)
• Beam and wash effect combination
• Smooth 32-bit linear dimming (0–100%)
• Multiple channel modes (23/28/62/92/94CH)
• DMX512, Auto, Master-Slave, and RDM support
• Strobe effect (1–30Hz)
• Durable metal housing

Performance & Effects

This pixel beam moving head light bar is built to deliver high-impact stage visuals:

• Sharp aerial beam effects
• Dynamic pixel chase sequences
• Full bar sweeping motion
• Wide color wash coverage
• Synchronized multi-unit shows

It is ideal for creating strong visual energy in live environments.

Technical Specifications

Voltage: AC100–240V 50/60Hz
Power: 360W
Light Source: 6×60W RGBW LEDs
Control: DMX512 / Auto / Master-Slave / RDM
Channel Modes: 23 / 28 / 62 / 92 / 94 CH
Dimming: 32-bit linear 0–100%
Strobe: 1–30Hz
Movement: Independent heads + base rotation
Housing: Metal, black

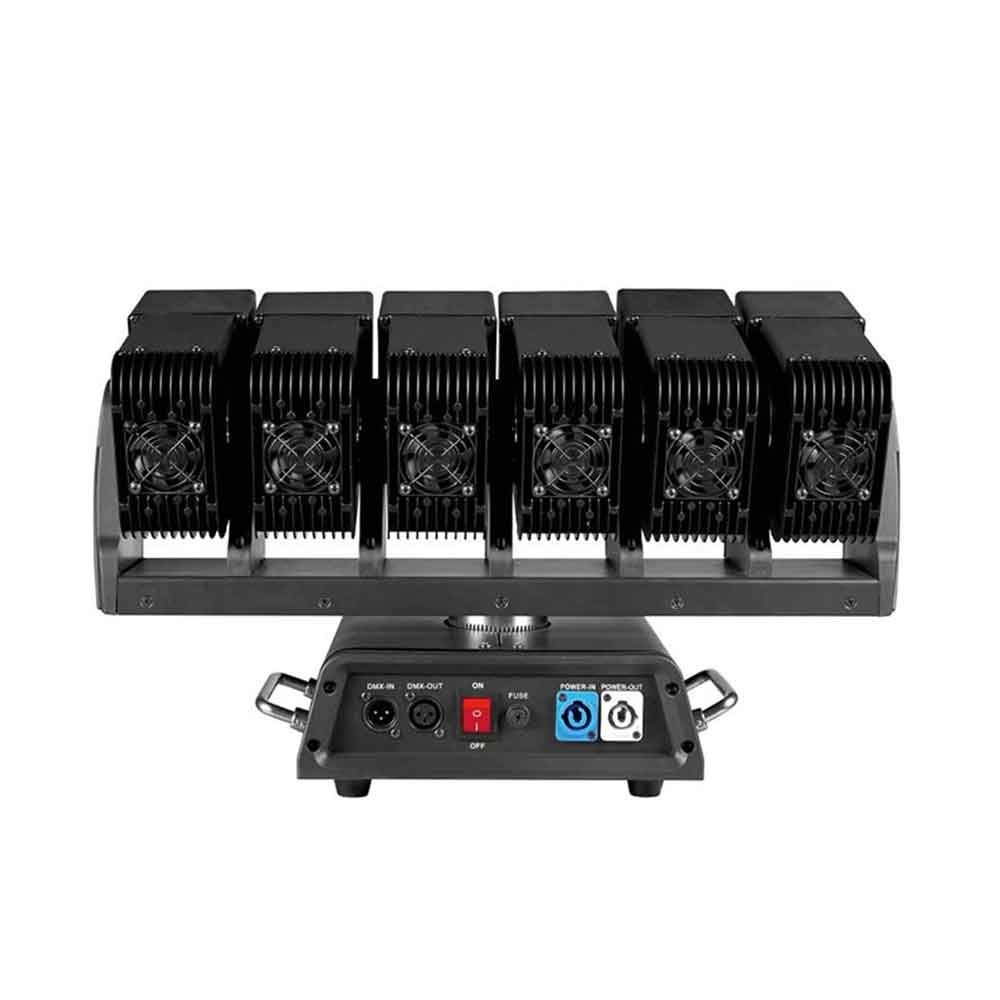

Connections: DMX in/out, power in/out
IP Rating: IP20
Working Temperature: -30°C to 50°C

Applications

This dual movement pixel beam moving head light bar is widely used in:

• Nightclubs and entertainment venues
• DJ performance setups
• Concert stages and live shows
• Event production companies
• Indoor stage lighting installations

It is especially suitable for environments that require strong motion effects and synchronized lighting systems.

Why Choose QIANSHILIGHT

QIANSHILIGHT is a professional stage lighting manufacturer focused on delivering reliable lighting solutions for global clients.

• Factory direct pricing
• Stable and professional quality
• OEM and customization available
• Fast production and delivery
• Experienced in stage lighting projects

FAQ

What is a dual movement pixel beam moving head light?
It is a lighting fixture that combines independent head movement with base rotation, allowing more dynamic and layered lighting effects.

What is the advantage over standard models?
Dual movement provides wider coverage, more complex motion, and stronger visual impact compared to single-movement fixtures.

Is this suitable for professional use?
Yes, it is designed for DJs, stage productions, and nightclub installations.

Can multiple units be synchronized?
Yes, it supports DMX and master-slave modes for synchronized lighting effects.
